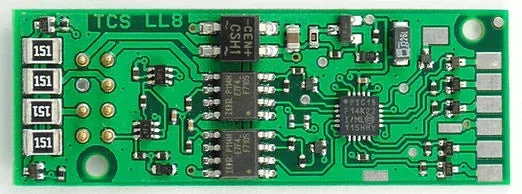

HO Train Control Systems LL8 8-Function Direct-Plug Decoder 1343

The LL8 is a 8-function direct-plug decoder designed specifically to meet the needs of LifeLike/Proto 2000 models. The LL8 can quickly be swapped for the existing DC board in your model, making the installation process fast and simple. The LL8 has a built-in circuit for the existing 1.5V bulbs used for the forward and reverse headlights. The remaining 6 lighting functions on the LL8 are rated for 12V.

IMPORTANT!If your model uses LED lighting from the factory, or you plan to upgrade to LED headlight(s), use the LL8-LED.

• Back EMF Load Compensation:Provides superior slow speed control and high performance under load.
• Quiet Drive:Super-quiet motor control for “buzz” free motor performance.
• DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• RailCom®:This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• Variable Momentum:Allows you to make custom acceleration and deceleration curves.
• 1.5 Volt Power Supply:This product has an on-board 1.5 Volt power supply for use with 1.5 Volt bulbs without resistors.
• Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs.
• Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness:Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock:Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible:Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables:Configure custom speed curves and set speed limits.

Specs:

• Interface Type: Direct-Plug (8-Pin NMRA)
• Dimensions (L x W x H): 1.989″ x 0.694″ x 0.134″ or 50.51mm x 17.64mm x 3.4mm
• Scale: HO Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 8
• Function Rating: 100 mA
• 12V Outputs: 6
• 1.5V Bulb Outputs 2
