Train Control Systems K8D6-A Decoder 6 Function (Board Replacement) | 1940

KATO (Type 8) Drop-in 6-function N-scale Decoder

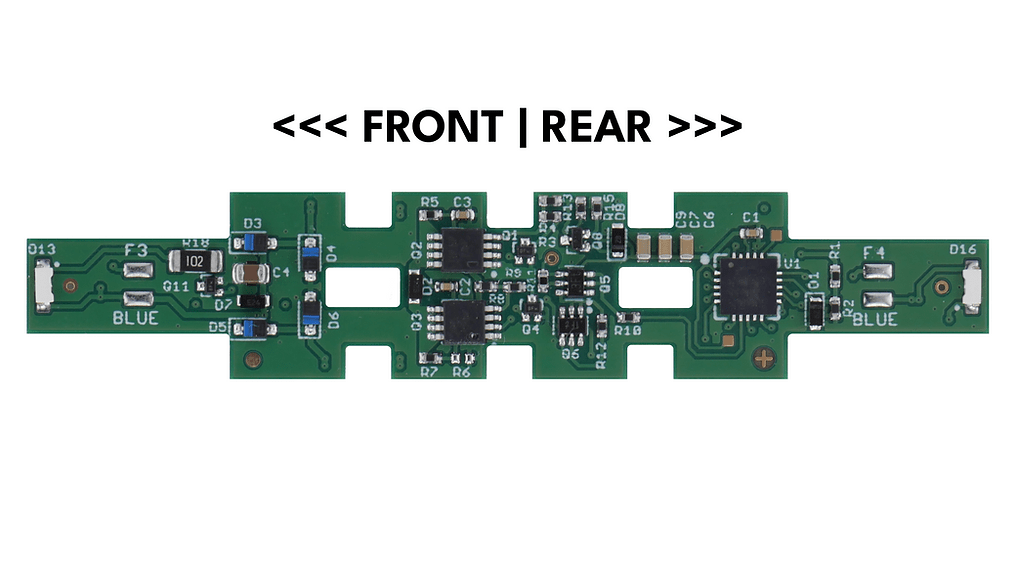

The K8D6 is a 6-function drop-in decoder for KATO N-scale locomotives. TheK8D6-Afeatures two super-bright LEDs on theTOPside of the board for directional ligthing. This decoder includes connections for up to four additional lighting outputs, each with on-board resistors for LEDs.
See the Compatibility tab for a full list of compatible engines. Installed using a plastic clip to secure to the chassis, and has two underside contacts for motor power. Quick and easy installation with no soldering or wires required!
The K8D6 also features RailCom® bi-directional communication for supporting systems.
Some features of this decoder include:

• Industry Leading BEMF Motor Control:Provides superior slow speed control and high performance under load.
• Six Lighting Functions:Two on-board LEDs for Headlight, Reverse light, plus four extra outputs for beacons, marker lights, or others.
• LED-Ready Lighting:This decoder has on-board 1K resistors for use with LEDs. It is not necessary to add your own external current-limiting resistors.
• RailCom®:This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• DC Mode:The decoder will automatically detect DC power. You can also configure lighting effects for DC operation.

Interface Type: Drop-In
Dimensions (L x W x H):Dimensions: 2.71” x 0.54” x 0.12” or 68.8mm x 13.7mm x 3mm
Scale:N Scale
Continuous/Peak Current:1.0/2.0
Total Functions:6
Onboard LEDs:2
Auxiliary LED Outputs:4
Auxiliary Function Rating:80mA (each) | 300mA (total)
