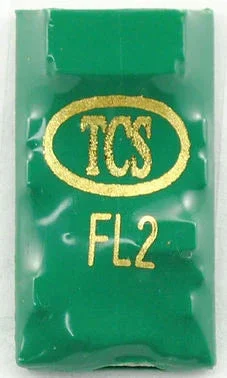

Train Control Systems FL2 Function-Only Decoder 1002

This function-only decoder is designed for any scale where extra lighting features and functions are needed. This decoder includes a 6-pin harness for easy installation and wiring. These decoders are commonly used for smoke coils.

Note: FL-series decoders do not provide motor control. A separate decoder must be used for motor function.

• Function Only:This decoder only has function control for lighting, and does not provide sound or motor control.
• DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs.
• Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness:Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock:Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible:Fully compatible with Airwire™ operation.

Specs:

• Interface Type: Direct-Plug (6-pin JST)
• Dimensions (L x W x H): 0.83″ x 0.466″ x 0.161″ or 21.07mm x 11.84mm x 4.08mm
• Scale: HO Scale O Scale G Scale N Scale
• Total Functions: 2
• Function Rating: 200 mA
• 12V Outputs: 2
