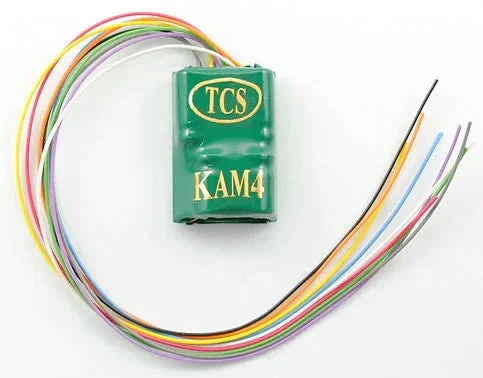

HO Train Control Systems KAM4 Decoder 1485

This hardwire decoder is the smallest decoder with built in Keep-Alive™ that we produce. It will keep your locomotive operating for 6-15 seconds without power (As a result of dirty track, poor contacts, etc.). While physically larger than a M-series decoder, the KAM4 features the same operational characteristics.

• Keep-Alive®: Included on-board for smooth, stutter-free operation.
• Back EMF Load Compensation:Provides superior slow speed control and high performance under load.
• Quiet Drive:Super-quiet motor control for “buzz” free motor performance.
• DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• Variable Momentum:Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs.
• Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness:Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock:Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible:Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables:Configure custom speed curves and set speed limits.

• Interface Type: Hard-Wire
• Dimensions (L x W x H): 0.945″ x 0.657″ x 0.33″ or 24mm x 16.7mm x 8.38mm
• Scale: HO Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 4
• Function Rating: 200 mA
• 12V Outputs: 4
