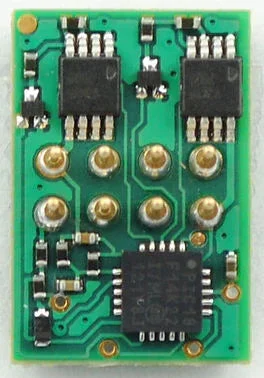

HO Train Control Systems DP2X Decoder 1028

HO-Scale decoder designed as a direct-plug replacement decoder for engines equipped with 8-pin NMRA sockets. By far one of the easiest decoders to install, the DP2X can be plugged into many locomotives with no effort.

• Back EMF Load Compensation:Provides superior slow speed control and high performance under load.
• Quiet Drive:Super-quiet motor control for “buzz” free motor performance.
• DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• RailCom®:This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• Variable Momentum:Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs.
• Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness:Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock:Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible:Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables:Configure custom speed curves and set speed limits.

Specs:

• Interface Type: Direct-Plug (8-Pin NMRA)
• Dimensions (L x W x H): 0.474″ x 0.702″ x 0.12″ or 12.04mm x 17.83mm x 3.05mm
• Scale: HO Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 2
• Function Rating: 80 mA
• 12V Outputs 2
