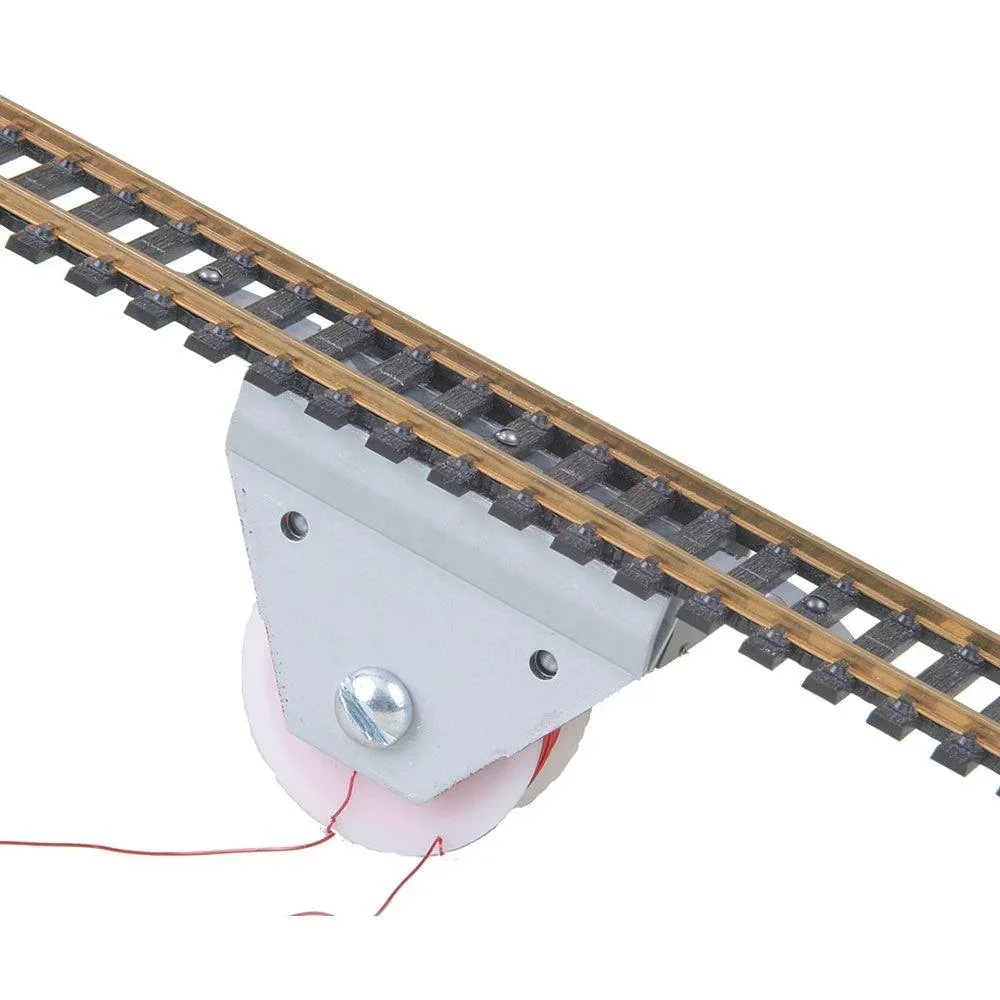

HO Scale Kadee #309 Under-the-Ties Delayed-Action Electric Uncoupler Kit

#309 Under-the-Ties Delayed-Action Electric Uncoupler Kit – HO Scale
Delayed Magnetic Uncoupling
Kadee® #165 Red – Normally Open momentary contact push button switches are recommend.
Fits any HO code track.
This package contained one HO Scale Magne-Electric electromagnetic, delayed action uncoupler kit, ready to assemble and install Under-the-Ties. It can be installed on any straight layout track, but especially on mainlines, were false uncoupling my occur.
Fits any HO code track.
Operates: 16 volt DC.
We recommend a 16-volt DC power source (at least 3 Amps) or 18-volt AC power source (at least 3 Amps) converted to DC with bridge rectifier.
WARNING: Do not use the uncoupler continually. DO NOT activate the uncoupler for longer than 2 MINUTES at one time.  This will avoid possible overheating which will damage the uncoupler.
(Track Not Included)
Package Includes:
(1 only) Coil
(1 only) Steel core
(4 only) Field plates
(1 only) Field plate divider
(1 only) Upper track mounting plate
(1 only) 10-32 x 7/8″ Bolt
(1 only) 10-32 Nut
(3 only) 2 x 3/8″ flat head self-tapping screws
(4 only) 0-48 x 1/4″ screws
(4 only) 0-48 x 3/8″ screws
(1 only) Bridge Rectifier
(1 only) Capacitor
