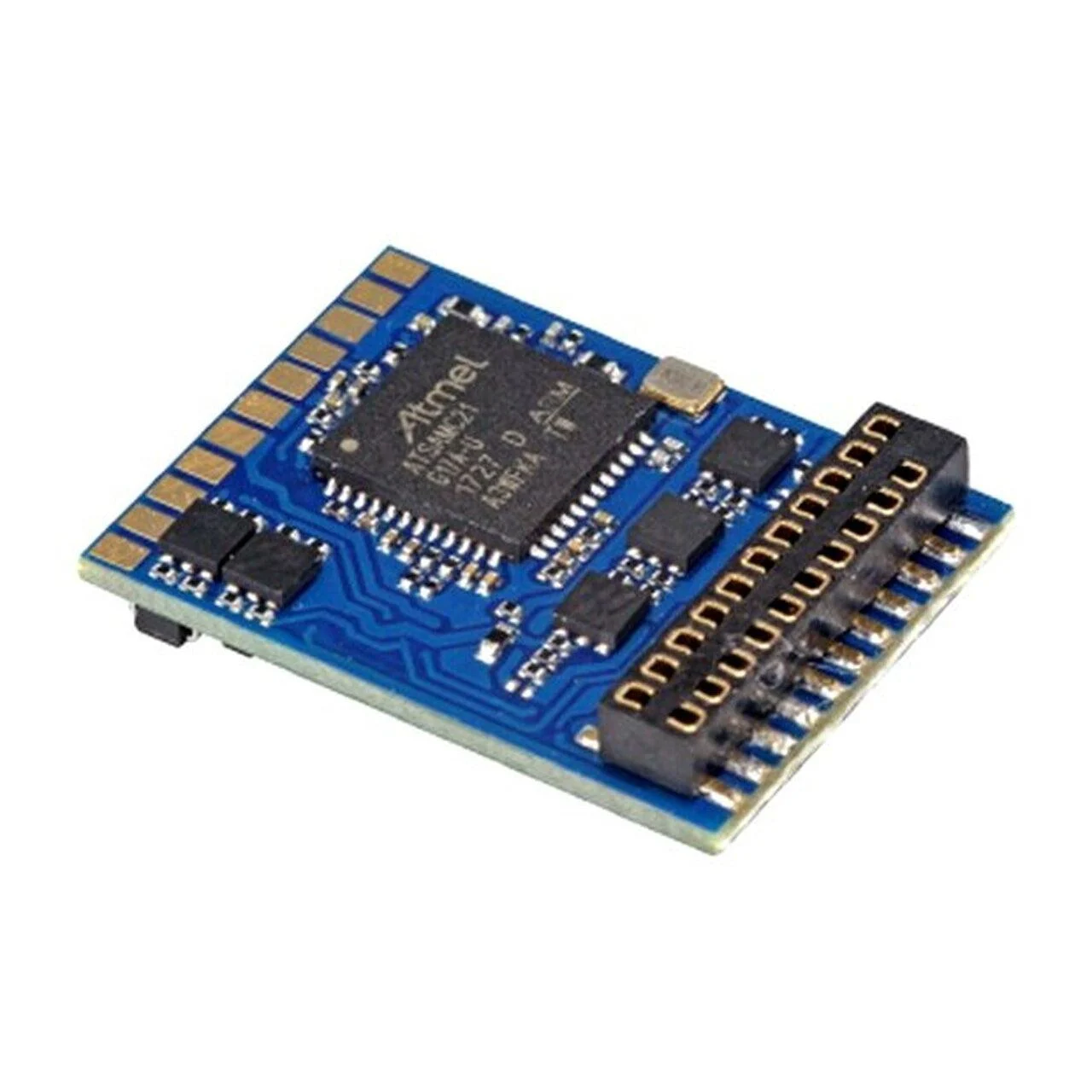

ESU 59629 LokPilot 5 DCC 21MTC NEM660

Decoder Specifications
Size: 21.4 mm x 15.5 mm x 4.5 mm (0.84″ x 0.61″ x 0.18″)
Connection: NEM660 21MTC Integral Connector
Motor Rating: 1.5A Continuous
BEMF: Motor control with 50 kHz clock frequency
Functions: 10 amplified outputs for special functions, 4 Logic-level outputs, 2 Servo Outputs (total: Up to 16 outputs)
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix

Additional Features:
No wires, features 21 pin plug technology
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional optional PowerPack storage capacitor connections
