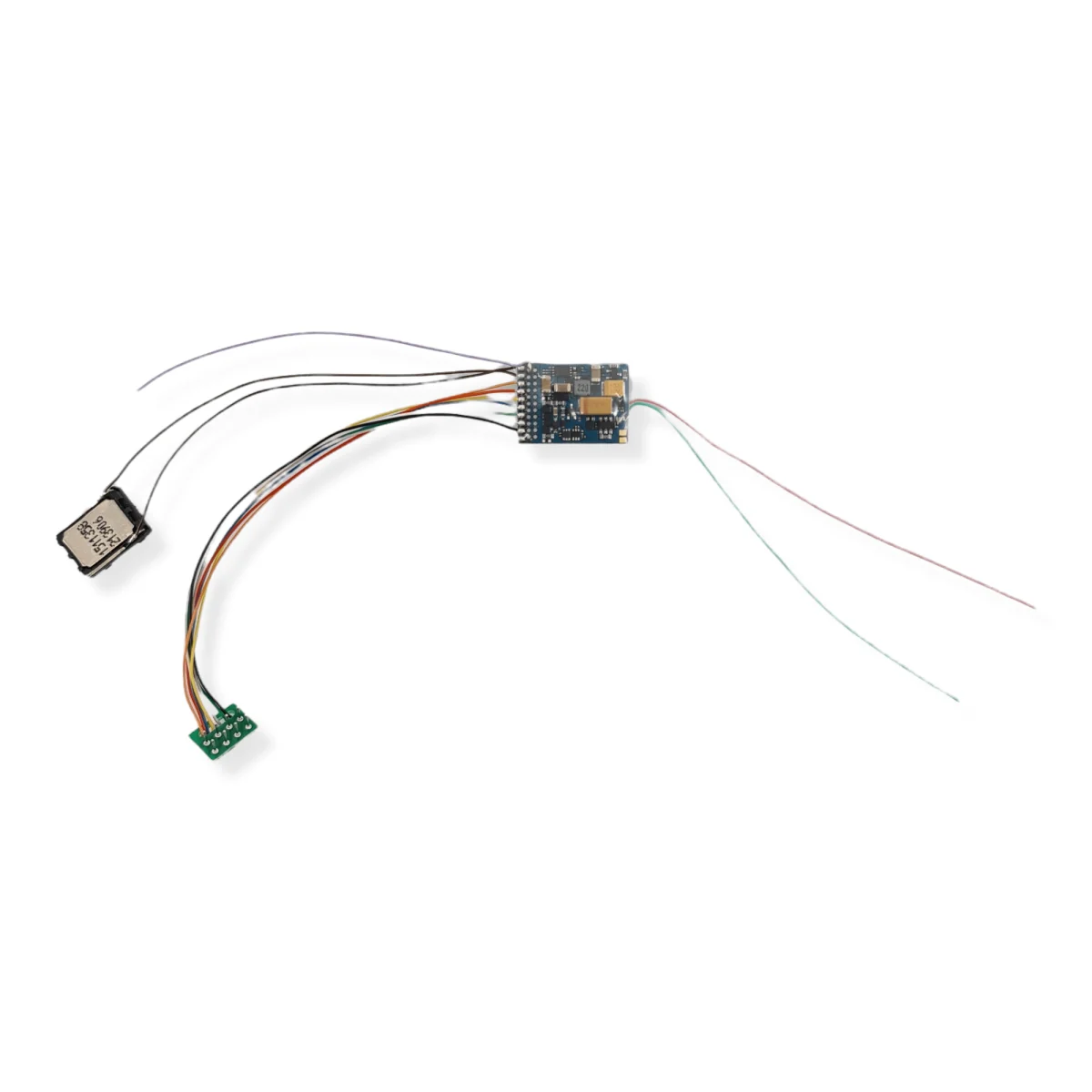

ESU 58210 LokSound 5 Fx DCC/MM/SX/M4 Sound Decoder 8-Pin NEM652

LokSound 5 FX Standard Multi-protocol (MM/DCC/SX) Function-Only Sound Decoder – NEM652 8-Pin Wired Plug
Decoder Specifications:
Size: 21.5 mm x 15.5 mm x 6.5 mm (0.85 in x 0.61 in x 0.26 in)
Connection: NEM652 8-pin Wired Plug
Motor Rating: NA – Function and Sound only
BEMF: NA
Functions: Up to 12 amplified outputs for special functions (total: Up to 15 outputs)
Sound:
32-bit processor
Digital class “D” amplifier with up to 13 W power
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 – 32 Ohm
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes 11×15 mm “sugar cube” loudspeakers with customizable sound capsule set

Speaker is not soldered to the decoder and comes with a modular enclosure.
