Digitrax EVOX Evolution Express Advanced 5A/8A Starter Set 1070

Digitrax EVOX Evolution Express Advanced Starter Set

TheDigitrax EVOX Evolution Express Advanced Starter Set (Model 1070)is a complete DCC command control system designed for model railroad enthusiasts who demand professional-grade performance and expandability. This comprehensive set includes everything you need to run up to 100 locomotives simultaneously with advanced throttle control, wireless operation, and intelligent power management.

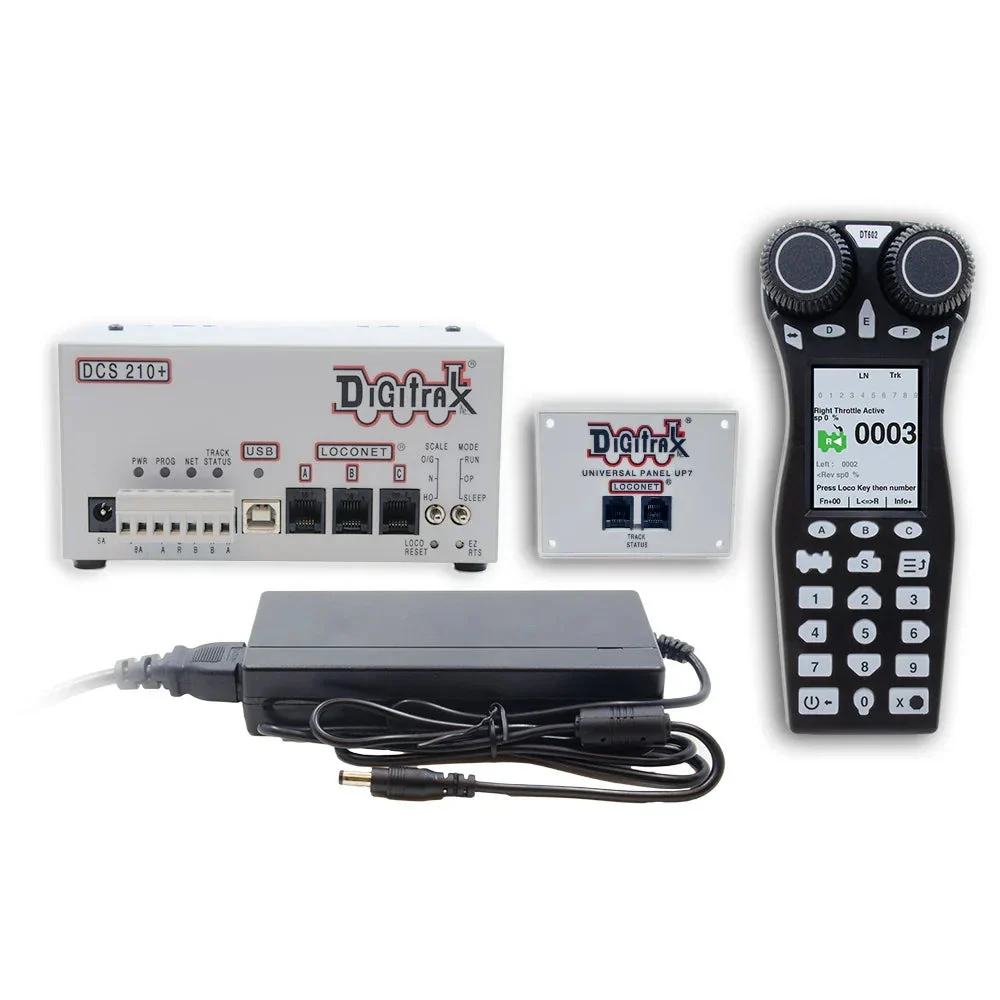

What’s Included in the Evolution Express Set

• DCS210+ Command Station/Boosterwith Intelligent AutoReverse
• DT602 Super LocoNet Throttlewith color LCD display
• UP7 Universal Panelfor simplified LocoNet connections
• PS615 Power Supply(5 amps)
• Evolution Express Manual

DT602 Advanced Super Throttle Features

• Compatible with LocoNet systems for seamless integration
• 2.4″ color LCD display screen with advanced menu system
• Built-in scrolling help and prompting for easy operation
• Soft ON/OFF switch with zero power drain when off
• Advanced display power saving extends wireless battery life
• Powered by 3 AA batteries (rechargeable compatible) – no more 9V batteries
• Available in standard tethered or Radio Duplex wireless modes
• Duplex scan for available networks and radio signal strength
• Replaceable LocoNet cord included with all throttles
• Dual throttle controls for simultaneous operation of two locomotives
• Encoder click knobs for precise speed and direction control
• Full numeric keypad for simple locomotive selection
• Control 29 functions (F0-F28) with function active/inactive indicators
• Convenient step-by-step throttle option setup
• Simplified decoder programming and 2 or 4 digit addressing
• Over 9,000 locomotive decoder addresses
• Turnout and stationary decoder control (2000+ addresses)
• Fast clock display and recall feature
• Advanced route editor and USB interface

Big System Capacity for Serious Layouts

• Run up to100 addressessimultaneously on your system
• Support for up to100 throttlesat the same time
• Over9,000 locomotive addressesavailable
• Address 00 for operation without decoders
• Two-digit addressing (01-127) for simplicity
• Four-digit addressing (0128-9000+) lets you use actual road numbers

Powerful 5 or 8 Amp Operation

• Selectable scale voltage for safe operation in all scales
• Customizable voltage settings
• 5 amps of power with included PS615 power supply
• Expandable to 8 amps withPS2012E power supply(sold separately)

Advanced Function Control

• Control 29 functions (F0-F28) for lights, sound, and effects
• Function 2 is a special non-latching key for horn/whistle control
• Constant brightness lighting with directional or independent control

Dual DCC Outputs for Maximum Flexibility

• Program decoders on one output while the other runs your layout
• Use one output for a braking section while operating trains
• No need to shut down operations for decoder programming

Comprehensive Decoder Programming

• Built-in read/write programmer for CV values
• Supports paged programming (Digitrax preferred method)
• Also supports direct, register, and ops mode programming

Flexible Consisting Options

• Universal consisting (Digitrax preferred) allows all locomotives to be consisted prototypically
• Advanced consisting and basic consisting supported
• Nested consisting where consists can be consisted together

Stationary Decoder and Turnout Control

• Access to stationary decoder control for turnouts and accessories
• DT602 reports turnout position based on last command sent
• Control over 2,000 stationary decoder addresses
• Turnout list/route capability simplifies complex yard operations
• EZ routes button for simplified command station route programming

Customizable System Options

• Toggle audible warnings on or off
• Configure purging options
• Multi-format command station mode
• Loco reset button for easy system purging

UP7 Universal Panel Benefits

• Simplifies LocoNet hookup
• 2 LocoNet jacks for network connections
• 3 throttle jacks for throttles and non-RailSync devices

Expandability for Growing Layouts

The Evolution Express is just the beginning. With LocoNet technology, you can expand your system with additional boosters, throttles, power management, detection, transponding, signaling, and much more. The DCS210+ includes 3 LocoNet ports and a USB interface for easy expandability.

Additional Advanced Features

• IPL updatable firmware for continued product improvements
• Device query and device statistics for troubleshooting
• Input mode to help set up detection on your layout
• Uses expanded slots for enhanced performance

International Versions Available

The Evolution Express is available in versions for Australia, European Union, Germany, Ireland, New Zealand, and United Kingdom.

Complementary Products

Enhance your DCC system with these compatible products from ourDigitrax collection:

• Additional DT602 throttlesfor multi-operator sessions
• PS2012E power supplyfor 8-amp operation
• LocoNet cables and accessories
• Additional boostersfor larger layouts
• DCC decodersfor your locomotive fleet
